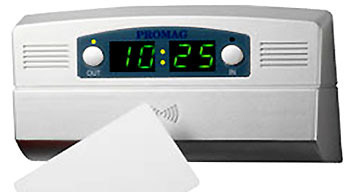

The TR515E Ethernet interfaced Time Recorder is simple to install and operate. This Time & Attendance terminal provides all the basic Time Recorder functionality in an attractive package.

Extremely versatile the TR515E Terminal can be used either as wall mount or as a desktop device. An excellent viewing angle is provided in both orientations by rotating the unit 180 degrees.

Specifications

Display : 4×7 Segment Blue light LED
Various Reader configurations
Magnetic Card Reader : ISO Track 2, 75 BPI
Barcode Reader : Visible or IR, numerical Code 39
RFID reader : 125 Khz, ASK, 64 bits Manchester coding or 13.56Mhz Mifare Reader
Datebase Capacity : App. 8200 records
Supported Interface : Ethernet, TCP/IP Protocol
Bell Control Relay : 1A, 12 V max
Power Supply : DC 9v, 500ma
Dimensions : W185 x H110 x D51 mm
Installation : Wall mount or Desktop
Operating Temperature : 0 ~ 55 Deg. C
Operating Humidity : 5 ~ 95 % relative

Features

Ethernet interface connected to Ethernet Hub
Works on Standard TCP/IP Network
Bright High Contrast blue LED display shows Time of day, Last 4 digits of the ID Code and error messages
Approximately 8200 records storage capacity
Convienient Machine number setup feature using In & Out buttons to simplify multi terminal installation
Built in Ring relay for external ring (Bell) control
Daily bell schedule of up to 32 different entries
Built in Card Reader.
Two buttons for clocking In and Out
