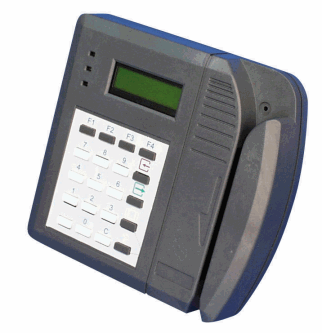

The OMNI (One Model, Numerous Identities) is a family of terminals, all having the same physical appearance. The terminals are ideal for time & attendance and access control. The OMNI terminals feature an Ethernet card allowing you to hook up the terminal to your existing Ethernet backbone.

Features

Can function in on or off-line mode.
Four line display with LED backlight
Read and green LED for reader feedback.
8 general purpose function keys.
Two relay outputs to control Access Control devices
and/or bell sounding etc.
One optically isolated input.
Power requirements: 18-24V DC.
Communication: RS232 or Ethernet card
RS232 model operate remotely with a modem

Integrated Readers [available on all models]

Proximity reader 125kHz technology).
Magnetic card reader (ISO-2 ABA).
Infrared barcode reader (code 39 and 2 of 5 interleaved).
Supports up to 7 additional string readers.
All reader technologies except barcode can be combined
with an external barcode reader device (wand or
scanner). Supports code 39 and 2 of 5. Up to 7 additional
readers can be attached to one OMNI terminal.

Housing

Dark grey ABS housing with integrated RFI shielding.
Dimensions: 200 x 190 x 90mm (W x H x D).
